उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्रोडक्ट का नाम: | 5kn 10kn 20kn 30kn 50kn लोड क्षमता UTM तन्यता संपीड़न यूनिवर्सल टेस्टिंग मशीन यांत्रिक गुण परीक्षण क | उत्पत्ति का स्थान: | बीजिंग चाइना |
|---|---|---|---|
| अनुकूलित समर्थन: | OEM, ODM, OBM | क्षमता: | 5केएन, 10केएन, 20केएन, 30केएन, 50केएन |
| नमूना: | XWW-5KN, 10KN, 20KN, 30KN, 50KN | आवेदन: | पीवीसी, पीई, एबीएस, पीपी, पीएमएमए, पीसी, राहेको, आदि |
| सटीकता सीमा: | ± 0.5% | प्रमाणपत्र: | आईएसओ, सीई |
| शक्ति: | 220V, 50HZ (अनुकूलित कर सकते हैं) | गारंटी: | 12 महीने |
| प्रमुखता देना: | 5KN universal testing machine,UTM tensile compression tester,electronic mechanical properties testing machine |
||
Using:

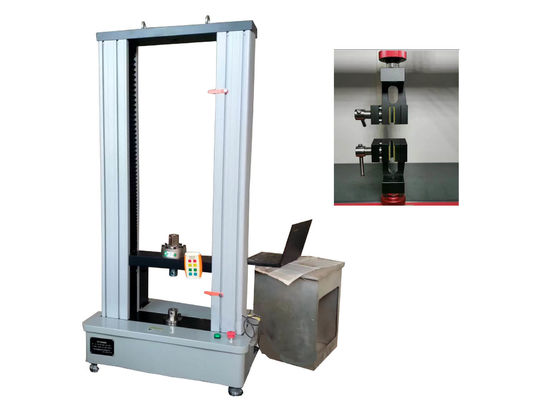

Universal Testing Machine for Determination of Tensile Properties of Molded and Extruded Plastics
Meet Standards:
Software function:
The machine is equipped with automatic zero calibration functionality. Key mechanical performance parameters, including maximum force, upper-yield strength, lower-yield strength, tensile strength, compressive strength, modulus of elasticity, and percentage of elongation, are all automatically calculated by the system.
Main technical parameters:
| Model | XWW-5KN/10KN/30KN/50KN |
| Type | Double column model |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | ±1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Displacement Speed Accuracy | ≤ ±0.5% |
| Metal Extensometer Accuracy Grade | ±0.5% |
| Test width | 380(can up to 1200)mm |
| Tensile Space | 700mm |
| Compression Space | 1000mm |
| Clamps | Tensile, compression, bending fixture |
| PC System | Equiped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host | 700*400*2000mm |
| Packing size & Weight | 800*500*2100mm,about 350kg |
